How to use the Boffintronics C64 Board with PetRockBlock’s Controlblock

While the Boffintronics Commodore 64 Adapter board can be hooked directly up to the GPIO of the Raspberry Pi, one of the easier ways is to use the PetRockBlock ControlBlock.

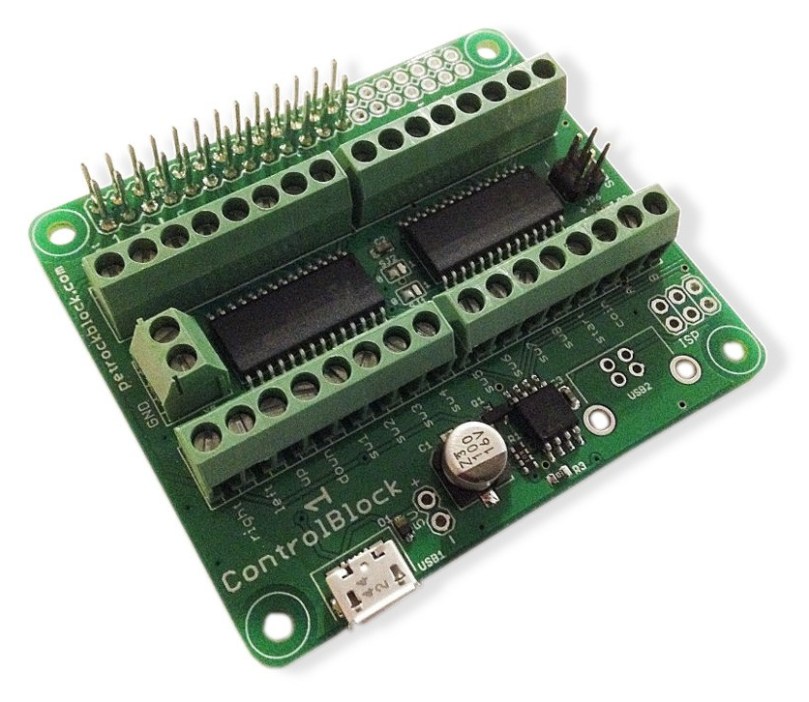

ad435

The ControlBlock is an add on board for the Raspberry Pi that adds 32 extra inputs for additional joysticks or buttons. The ControlBlock also allows for adding a power switch and LED with intelligent start up and shutdown scripts.

Addicore is the exclusive US distributor for all of PetRockBlock’s boards, including the ControlBlock. Addicore also carries the Boffintronics C64 Board as well as hookup wires.

Hooking up the C64 board is fairly simple since standard Commodore and Atari joysticks are just switch closures that ground the corresponding pin on the connector. Each joystick will require 5 connections plus a ground.

The ControlBlock breaks up the inputs so that Player 1 is on one side and Player 2 is on the other.

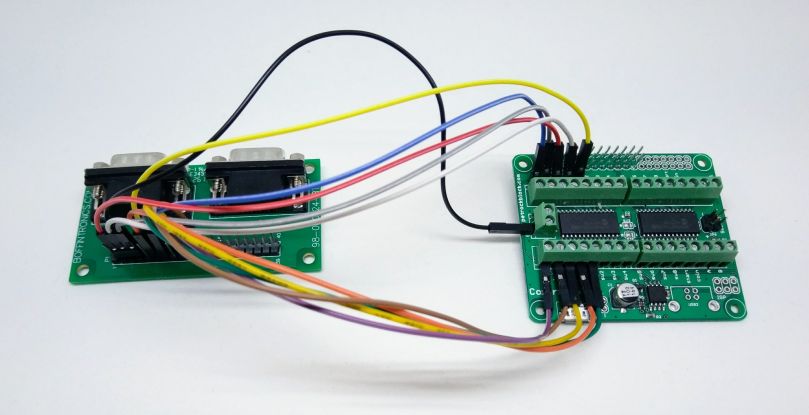

controlblock_c64_20180123

For Player 1, connect the following wires;

C64 Board ControlBlock (Player 1)
Pin 21 Right
Pin 22 Left
Pin 19 Up
Pin 11 Down
Pin 16 SW1
Pin 6 GND

For Player 2, connect the following wires;

C64 Board ControlBlock (Player 2)
Pin 13 Right
Pin 7 Left
Pin 3 Up
Pin 5 Down
Pin 12 SW1
Pin 6 GND



If you want to use the power switch and LED functions of the ControlBlock, the instructions can be found here.

You will need to install the drivers for the the Controlblock on your Raspberry Pi which can be found here.

Once the driver is installed, use the arcade button profile. This allows for the best functionality in the C64 emulator VICE.
